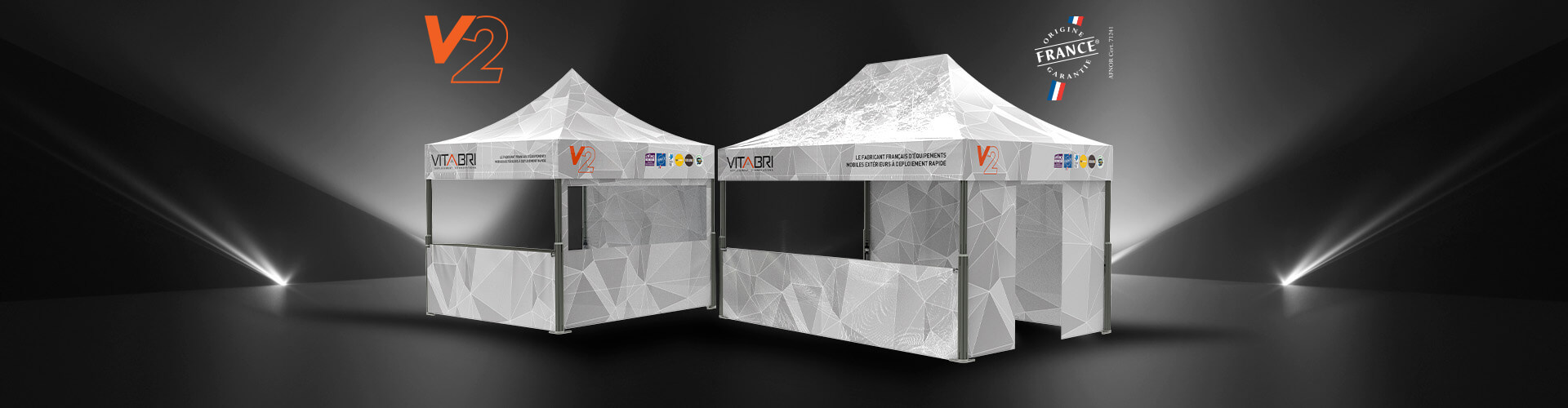

Barnums pliants V2

V2: top-of-the-range professional popup gazebo

Packed with innovative technologies, the V2 range is renowned for its rugged construction and good looks.

Its patented gas spring-assisted opening system ensures it can be opened easily and smoothly by anyone. The astonishingly simple system requires just two people, who can assemble the gazebo in seconds, without any tools, even the very large models.


The ideal gazebo for intensive professional use

Available in several sizes (3 x 3, 4 x 6, 5 x 5, 3 x 4.5), this range is ideal for intensive, semi-permanent or permanent professional use. It allows you to cover a space of up to 25 m² in just a few seconds.

The V2 gazebo is fitted with casters for easy movement over any kind of ground.

Choose this folding gazebo made in France for your events and professional uses: local authorities, sports teams, restaurants, armed forces, itinerant traders, etc.

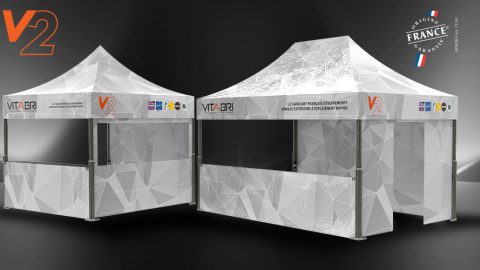

Barnum pliant V2

Packed with innovations

This range of popup gazebos features a unique concept that took over 3 years of research and development.

When designing it, our R&D department paid particular attention to ease of assembly, aesthetics and robustness to ensure safe use.

DimensionsOpened dimensions (m)Folded dimensions (m)Weight (kg) with PVC 500 roofHeight under valenceRoofing heightTop foot diameter (mm)Diameter of the bottom foot (mm)
3 X 33,125 x 3,1250,50 x 0,50 x 1,7581,82,06 m3,61 m83108
3 X 4,503,125 x 4,6000,60 x 0,60 x 1,7592,42,06 m3,72 m83108
4 X 64,000 x 5,9200,65 x 0,75 x 2,251152,47 m4,40 m83108
5 X 55,000 x 5,0000,60 x 0,60 x 21212,245 m4,28 m83108
5 X 5 garden5,000 x 5,0000,80 x 0,80 x 2,671292,47 m5,17 m83108

Technical characteristics of the v2 popup gazebo

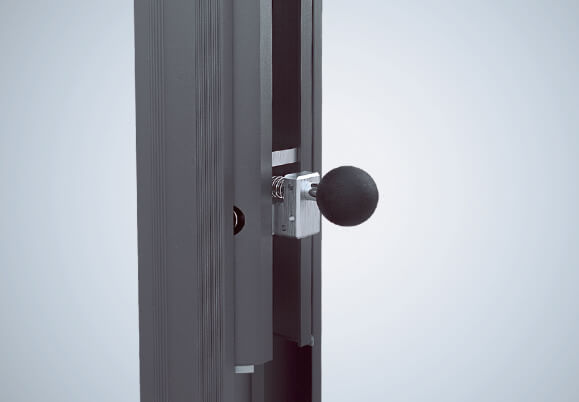

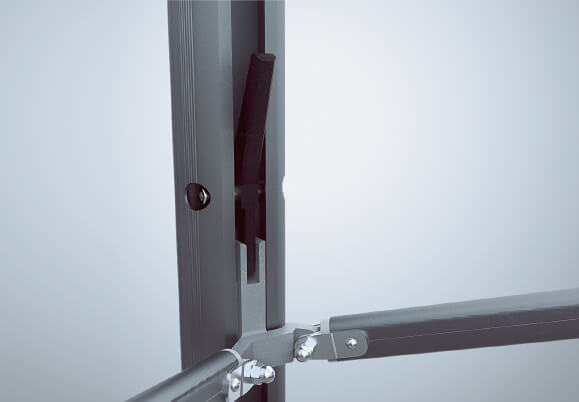

  • Sliding carriages mounted on PTFE sliders and (patented) blocking catch: effortless locking in place
  • EAV system (gas spring-assisted elevating system)

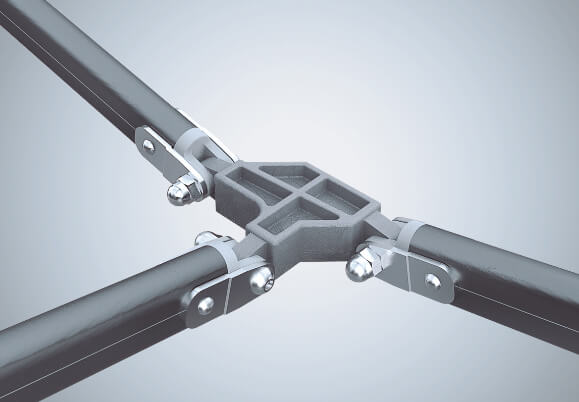

  • Reinforced injection-moulded aluminium connectors

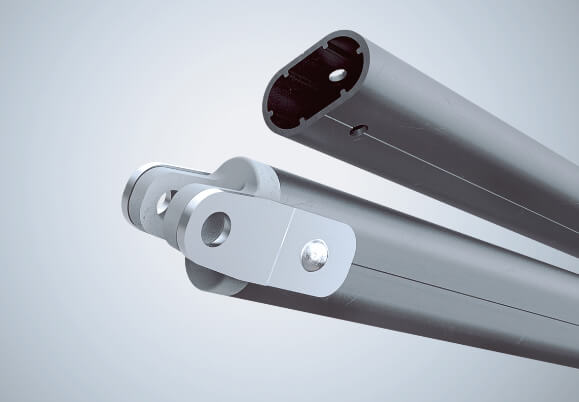

  • Truss bars: 6 internal reinforcements and reinforcement plates

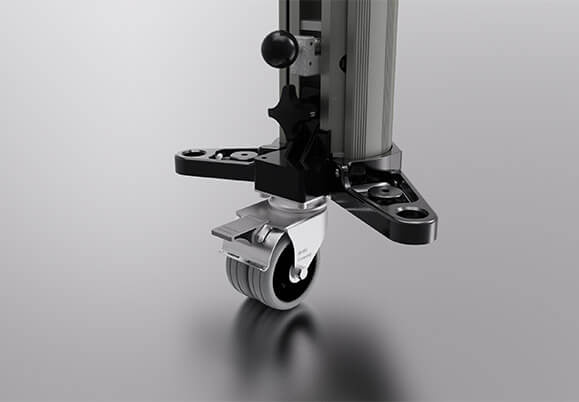

  • Cast aluminium base plate with removable caster

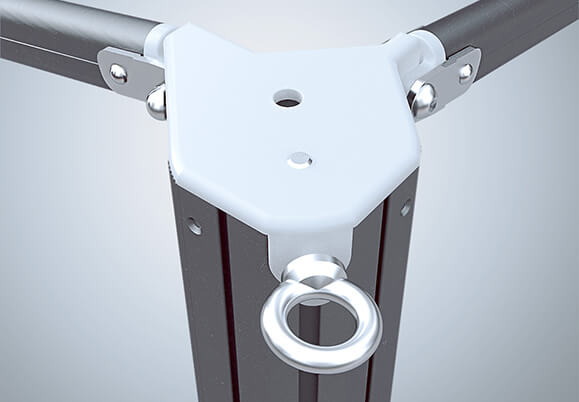

  • Guy rope rings

Weight and dimensions

  • Dimensions: 3 x 3 m, 4 x 6 m, 5 x 5 m, 3 x 4.5 m
  • Aluminium section legs, Ø 108 mm and Ø 83 mm, 2 mm thick
  • Size when closed: 0.5 m²
  • Weight: 81 to 129 kg depending on the model

Would you like to equip yourself with V2 pop up gazebos?
